RJ11 vs RJ14 vs RJ45 vs RJ48: Connector Differences Explained
Advertisement
RJ11, RJ14, RJ45, and RJ48 connectors are all members of the Registered Jack (RJ) connector family. While they share some similarities, they have distinct differences in terms of their pinout, the number of pins used, wiring standards, color codes, and common applications.
Here are the similarities between them:
Connector Family: All four connectors belong to the RJ connector family, meaning they share some physical characteristics and can be used with compatible jacks and sockets.
Modular Design: RJ11, RJ14, RJ45, and RJ48 connectors are designed with a modular plug and socket configuration, allowing them to be easily connected and disconnected from jacks or outlets.
Compatibility: These connectors can use the same physical interface, meaning they can be inserted into the same type of jack. However, keep in mind that the wiring and pin configurations may differ significantly.
RJ11 ConnectorThe RJ11 connector is commonly used as a telephone plug. It serves as a physical interface to terminate telephone wires.
This RJ11 connector has 6 positions, but typically only 4 are installed. The pins commonly used are 2, 3, 4, and 5.
It mainly uses 2 wires for the connection, specifically pins 2 and 5.
It’s primarily used to connect a single telephone line.
It uses 6P4C (6 Position, 4 Contact) & 6P2C connector types.
The following table outlines the RJ11 pin descriptions:
RJ11 pin numberDescription1 No connection (NC)
2 RD
3 GND
4 NC
5 TD
6 NC
The table below shows RJ11 pin details for RS232, RS422, and RS485 connections:
RJ11 pin numberDescription1 RTS output
2 TX+ output
3 GND (for RS232), (TX- for RS422/RS485)
4 GND (for RS232), (RX- for RS422/RS485)
5 RX+ input
6 CD input
This RJ14 connector also has 6 positions with 4 installed pins (2, 3, 4, and 5).
It is typically used for connecting two analog telephone lines.
It utilizes 4 wires for the connection.
It can connect two telephones.
It uses the 6P4C connector type.
The following table describes the RJ14 pin assignments:
RJ14 pin numberDescription1 Unused
2 Tip-2
3 Ring-1
4 Tip-1
5 Ring-2
6 Unused
Figure-1 (not included as a separate image but can be inferred from the RJ11 image above) shows pin details of RJ11 vs RJ14 connector types used to interface analog voice lines.
RJ45 ConnectorThe RJ45 connector is primarily used as a data plug, particularly for Ethernet connections.
It uses an 8P8C (8 Position, 8 Contact) connector type.
The table below describes RJ45 pin descriptions according to both the T568-A and T568-B wiring standards:
RJ45 pin numberDescription as per T568-ADescription as per T568-B1 Receive Data+ (white/green) Transmit Data+ (White/orange)
2 Receive Data- (green) Transmit Data- (orange)
3 Transmit Data+ (white/orange) Receive Data+ (white/green)
4 Not used (blue) Not used (blue)
5 Not used (white/blue) Not used (white/blue)
6 Transmit Data- (orange) Receive Data- (green)
7 Not used (White/brown) Not used (white/brown)
8 Not used (brown) Not used (brown)
RJ48 Connector
The RJ48 connector is typically used for connecting T1, E1, and J1 lines in telecommunications.
It uses an 8P8C (8 Position, 8 Contact) connector type.
In a crossover cable between RJ48 connectors, the connections are made as follows:
1 - 4
2 - 5
4 - 1
5 - 2
In a straight cable between RJ48 connectors, the connections are:
1 - 1
2 - 2
4 - 4
5 - 5
The following table outlines the RJ48 pin descriptions:
RJ48 pin numberDescription1 RX/Ring/-
2 RX/Tip/+
3 Not connected
4 TX/Ring/-
5 TX/Tip/+
6 Not connected
7 Not connected
8 Not connected
Difference between RJ11, RJ14, RJ45, and RJ48
Let’s compare RJ11, RJ14, RJ45, and RJ48 based on various parameters, as shown in the table below:
ParametersRJ11RJ14RJ45RJ48Number of pins 6 6 8 8
Connector type 6P4C & 6P2C 6P4C 8P8C (8 position 8 contact) 8P8C (8 position 8 contact)
Wiring standard TIA-568A or B (optional) TIA-568A or B (optional) TIA-568A or B (standard) TIA-568A or B (standard)
Connector size Smaller, narrower Smaller, narrower Larger, wider Larger, wider
Pin Arrangement Typically 2 pairs of wires Typically 2 pairs of wires 4 pairs of wires 4 pairs of wires
Data transmission Low data rates (typically up to 10 Mbps) Low data rates (typically up to 10 Mbps) High data rates (up to 1 Gbps or more) Digital telecommunications circuits
Cable length (maximum) Up to 100 meters (phone lines) Up to 100 meters (phone lines) Up to 100 meters (Ethernet) Up to 100 meters (T1/E1 lines)
Wire Gauge Often uses thinner wire (e.g., AWG 26) Often uses thinner wire (e.g., AWG 26) Typically uses thicker wire (e.g., AWG 22) Typically uses thicker wire (e.g., AWG 22)
Color coding May have various color codes May have various color codes Standardized color-coding (TIA-568A/B) Standardized color-coding (TIA-568A/B)
Common Use case Voice and fax communication Two-line phone systems Data transfer and networking T1 and E1 digital line connections
Conclusion
In summary, RJ11, RJ14, RJ45, and RJ48 connectors share a common modular design but differ significantly in their pin count, wiring standards, typical applications, data transmission capabilities, and overall purpose. These differences make each connector suitable for specific types of connections and networking applications.
Advertisement
Top Subcategories
Other Wireless (697)
RF Components (417)
RF Basics (244)
Networking Basics (231)
Components (208)
IoT (163)
Advertisement
Top Tags
wireless communication (436)
iot (329)
rf (268)
wireless (256)
network (242)
5g (225)
mobile communication (215)
lte (213)
wireless technology (201)
signal processing (182)
Advertisement
Advertisement
Related Posts
RJ11 vs RJ45: Understanding the Key Differences
Explore the similarities and differences between RJ11 and RJ45 connectors, focusing on their applications in telephone and data networking.
10 Gigabit Ethernet Physical Layer (10GbE PHY)
Explore the 10 Gigabit Ethernet (10GbE) physical layer, its subgroups (10GBASE-R, X, T, W), and sublayers like XGMII, PCS, PMA, PMD, and MDI. Learn their functions and specifications.
Ethernet: Standards, Frames, and Protocols
Explore Ethernet technology: standards (10/100/1000Mbps), frame formats (DIX/802.3), CSMA/CD protocol, topologies, and test protocols for LAN connectivity.
Advertisement
10GBASE-T vs 10GBASE-R vs 10GBASE-X vs 10GBASE-W: Key Differences
Explore the distinctions between 10GBASE-T, 10GBASE-R, 10GBASE-X, and 10GBASE-W, covering their media, encoding, and application differences in 10 Gigabit Ethernet.
Ethernet Advantages and Disadvantages: A Comprehensive Guide
Explore the pros and cons of Ethernet technology, covering reliability, speed, security, mobility, and cost-effectiveness for network solutions.

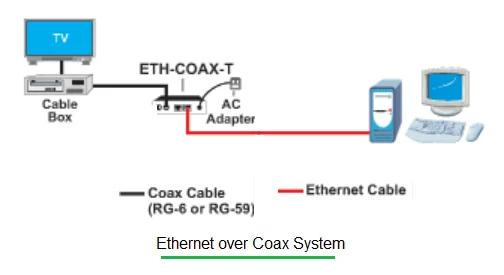

Ethernet over Coax: Advantages, Disadvantages, and Key Differences
Explore Ethernet over Coax (EoC) technology: how it works, its advantages and disadvantages, and key differences compared to traditional Ethernet. Learn if EoC is right for your networking needs.
Advertisement
Ethernet over InfiniBand: Advantages and Key Differences
Explore Ethernet over InfiniBand (EoIB), its benefits like high speed and low latency, drawbacks like specialized hardware, and key differences from standard Ethernet.
Ethernet Over Twisted Pair: Advantages and Disadvantages
Explore the pros and cons of Ethernet over twisted pair for networking. Learn about cost, installation, distance limitations, and interference susceptibility.

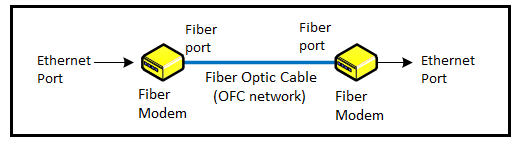

Ethernet over Fiber: Advantages and Disadvantages
Explore the benefits and drawbacks of Ethernet over fiber optic Ethernet, comparing it to traditional copper Ethernet implementations for network communication.

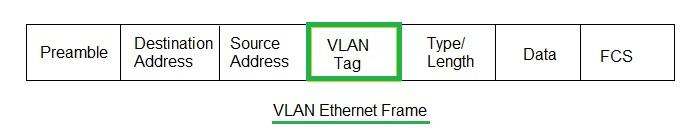

VLAN Advantages and Disadvantages
